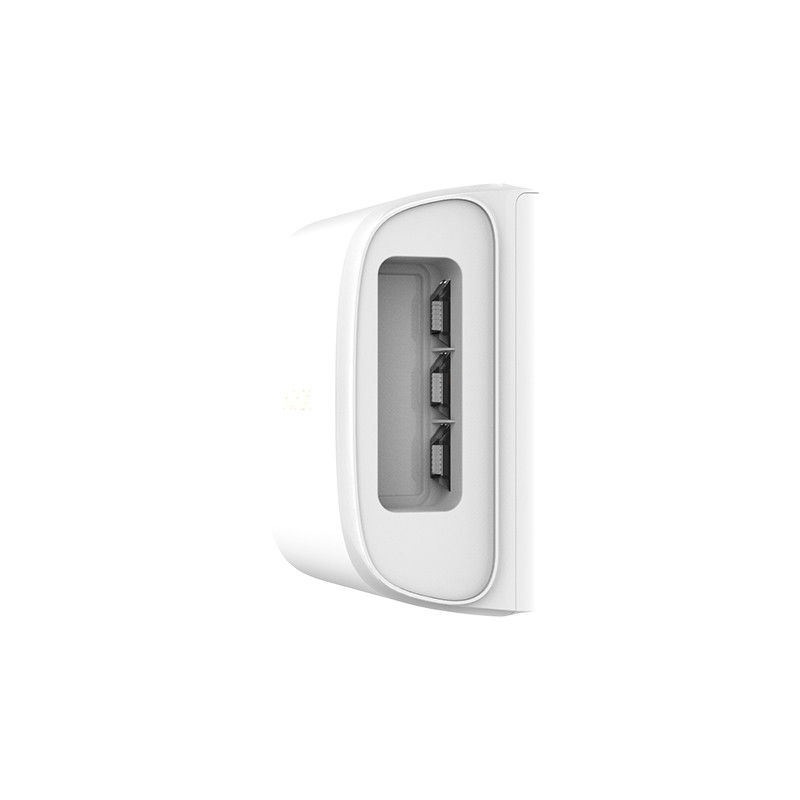

Ajax bidirectional curtain motion sensor for intrusion detection security alarm system. Wireless and pet immune. On the sides of the detector there are two optical systems with narrow viewing sectors, each equipped with two PIR sensors

Features

Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX
Sensing element: IR sensor, 2 on each side
Motion detection distance: 4 to 15 meters (on each side, depends on settings)
Detection angle, horizontal: 4.5°
Possibility to deviate the horizontal viewing angle: Yes, by 3°
Motion detection speed: From 0.3 to 2 m/s
Pet immunity option: Pets up to 80cm in height
Near area detection: Yes
Protection against false triggering: Yes
Tamper protection: Yes
Protection against masking: Yes
Installation: indoor and Outdoor
Frequency band: 868.0 – 868.6MHz
Maximum radio signal strength: 6.35mW (limit up to 20mW)
Radio signal modulation: GFSK
Up to 1,700 m  in an open space (in a perfect environment)
Power supply: 2 CR123 batteries 3V
Battery life: Up to 4 years
Protection class: IP54
Operating temperature range: -25°C to +60°C
Operating humidity: Up to 95%
Dimensions: 174 × 123 × 88mm
Weight: 615g
White

13268.36.WH1
