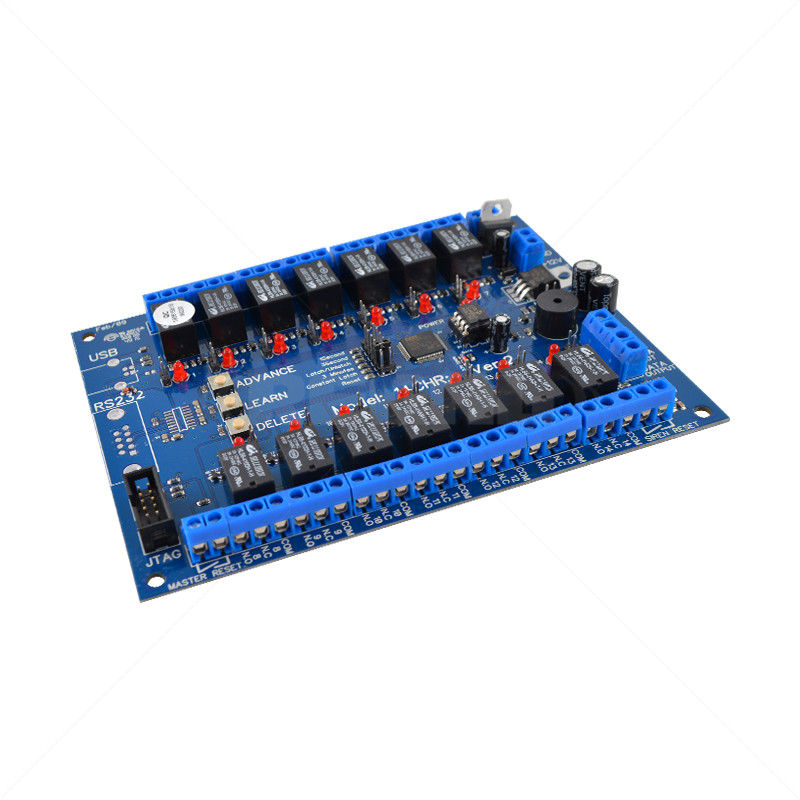

14 Channel Data Receiver Relay Expander Module 64 User

Features

14 Channel receiver relay expander module code-hopping
Needs to be wired to a data receiver
14 x 1A Relay outputs
64 x Remotes per Channel
1 sec 3 sec Latching
3 min Constant Latch programmable relays
Hardwired Reset
Siren output
LED Outputs with 1k Resistors on-board
Encryption : Code-Hopping
Operating Temp : -3 C to 65 C
Input Voltage Range : 12 - 24V
Relay Contact Rating : 1A
Memory Capacity: 64 Remotes per Channel

14CHR-V2
